Pipe bender “Sinus” with bending segments, in a carrying case, for pipe outer ⌀: 12-22mm
Article no.: 822011 12-22
Article code:
New product
- Labelling of hazardous substances: GHS02: Flame
Product details
Technical Data
| for pipe outer ⌀ | 12; 15; 18; 22 mm | |
| Labelling of hazardous substances | GHS02: Flame | |
| Packaging | sheet metal case | |
| Number of bending segments | 4 | |
| Number of pipe bending machines | 1 | |
| Number of slide blocks | 4 | |
| maximum bending angle | 180 degrees | |
| Material of bending segment | glass fibre-reinforced polyamide | |
| Material of slide block | glass fibre-reinforced polyamide | |
| Type of product | Bending machine |
Identification & Classification
| Article number | 822011 12-22 | |
| EAN / GTIN | 4039976026925 | |
| Manufacturer number | 154003 R | |
| Manufacturer/responsible person | REMS GmbH & Co. KG, Stuttgarter Straße 83, 71332 WAIBLINGEN, Germany, www.rems.de |
Description
Version:
Universal, robust hand-held pipe bender for cold draw bending of pipes. Forming segments and slide blocks are of fibreglass-reinforced polyamide, i.e. very resistant but at the same time lightweight. The bending formers can be exchanged to deal with various pipe ⌀. The pipe bender can be fixed in a vice or held in the hand.
Application:
For bending both soft and hard copper pipes, thermally insulated copper pipes, steel pipes as well as aluminium and stainless steel pipes in sizes 10 − 22 mm outside diameter (12 -18 mm for stainless steel pipes). Bending angles up to 180°. (Max. wall thickness of pipes 1.5 mm, soft copper up to 3 mm, stainless steel up to 1.5 mm.)
Content:
Pipe bender: 1 pc.
1 each bending segment for pipe external ⌀: 12; 15; 18; 22 mm
1 each slide block for pipe external ⌀: 12; 15; 18; 22 mm
1 each bending segment for pipe external ⌀: 12; 15; 18; 22 mm
1 each slide block for pipe external ⌀: 12; 15; 18; 22 mm
Supplied with:

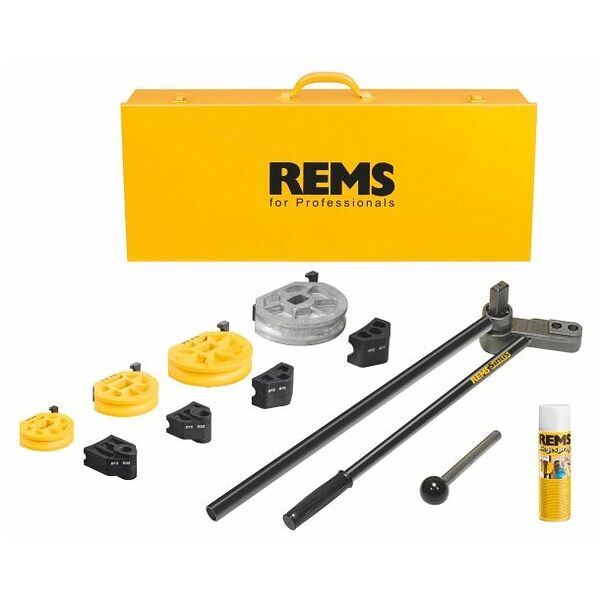

Bending drive of hardened steel, plug-in bolts, 4 bending formers, 4 slide blocks, and special bending spray, all in a sheet metal carrying case.
