Tee bolt (12.9.) single, Type: 222080
Article no.: 375310 222080
Article code:
Product details

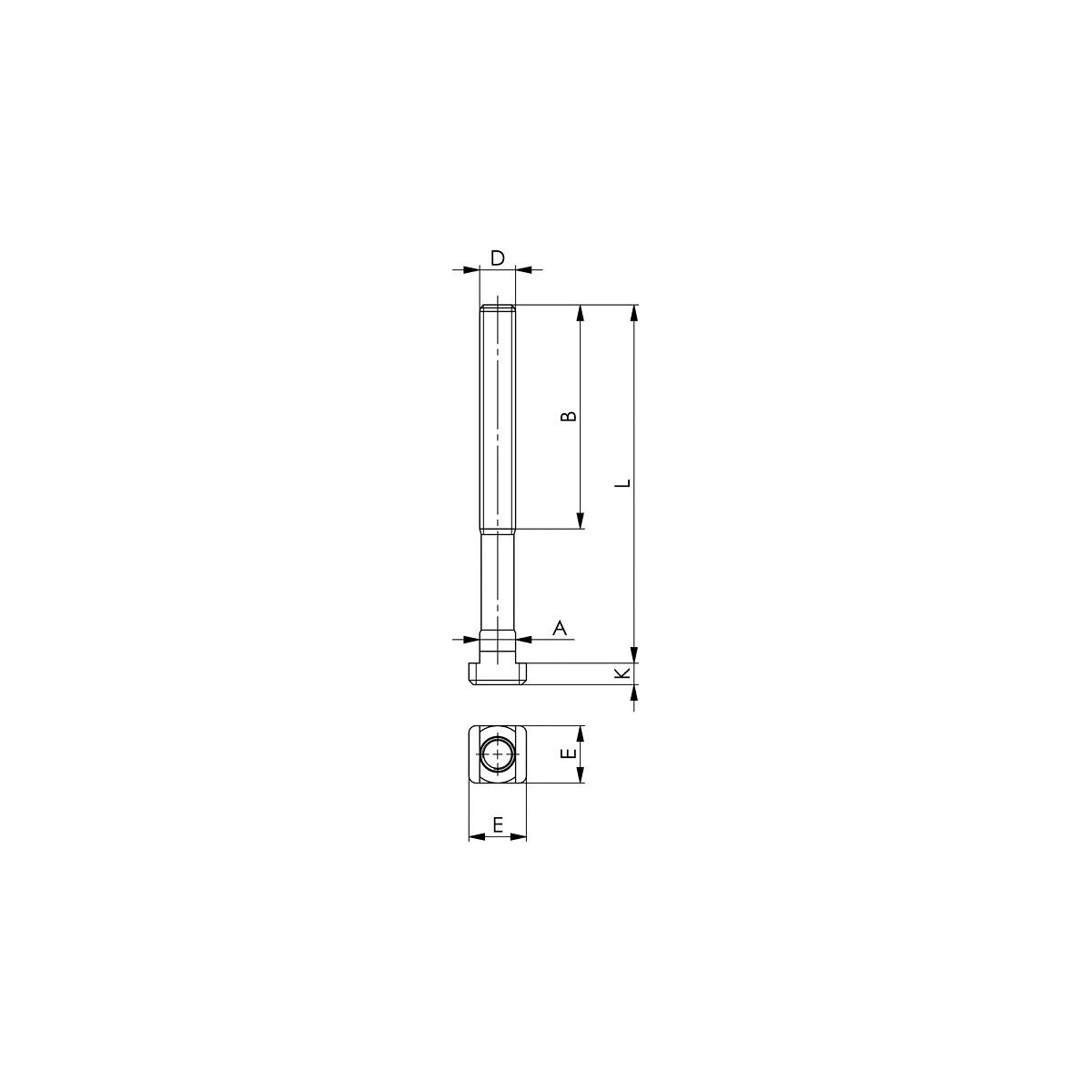

Technical Data
| Type | 787 | |
| T-slot nominal size | 22 mm | |
| Thread G | M20 | |
| Length L | 80 mm | |
| Thread length b | 55 mm | |
| narrow nut width a | 21.7 mm | |
| Nut width e | 35 mm | |
| Height k | 14 mm | |
| Type of product | Tee-bolt |
Identification & Classification
| Article number | 375310 222080 | |
| EAN / GTIN | 4020772086343 | |
| Manufacturer number | 86348 | |
| Manufacturer/responsible person | Andreas Maier GmbH & Co. KG, Waiblinger Straße 116, 70734 FELLBACH, Germany, www.amf.de |
Description
Version:
T-bolt, forged and rolled thread.
High-tensile design, strength class = 12.9.
High-tensile design, strength class = 12.9.
Standard:
DIN 787
Supplied with:
Single, without nut and washer.
Optional extras:
Note:
- Reading example − size 6625 means: T-slot = 6 mm, thread G = M6, length L = 25 mm.
